sCOLOR V
Volumetric

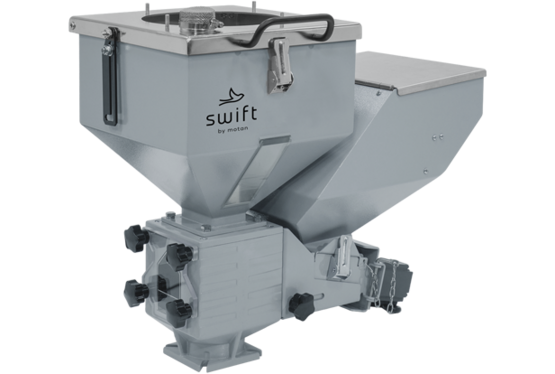

sCOLOR V

Combining additives with the virgin material at the processing machine requires excellent mixing quality and consistently accurate dosing. These requirements can be achieved and exceeded with the volumetric sCOLOR V dosing and mixing unit. The units are mounted at the feed throat of the plastics processing machine and are space-saving.

Mixing neck Excellent mixing quality Read more
Synchronous dosing Only the right amount of material is ever dosed. Read more
Mounting flange No need for drilling Read more
Angled dosing screws No material slip on the screw. Read more
Dosing motors Maintenance free and reliable Read more
Simple calibration No material spillage during calibration. Read more
Quick material changeovers Higher efficiency because more time spent in production. Read more
sCOLOR control Intuitive colour graphic display with touch screen for easy operation of sCOLOR V. Read more
All advantages at a glance
Mixing neck
Synchronous dosing
Mounting flange
Angled dosing screws
Dosing motors
Simple calibration
Quick material changeovers
sCOLOR control
  • ×
×

Volumetric

sCOLOR V

Mixing neck

Excellent mixing quality

The mixing cruciform is made of stainless steel. It separates the main material from the additives until they meet just above the throat of the processing machine. After flowing together, they result in a homogeneous mix with no material separation.

×

Volumetric

sCOLOR V

Synchronous dosing

Only the right amount of material is ever dosed.

Excellent recipe accuracy is achieved with synchronous dosing.

×

Volumetric

sCOLOR V

Mounting flange

No need for drilling

Thanks to the user-friendly design of the mounting flange, fixing the unit on to different sized feed throats without the need for drilling is very easy.

×

Volumetric

sCOLOR V

Angled dosing screws

No material slip on the screw.

The screws are inclined at an angle for a constant dosing flow insensitive to vibration. This gives you greater accuracy because machine movements have no effect on the dosing process and material slip on the screw is eliminated.

There are different sizes of wear-­resistant dosing screws available. They can be removed without the use of tools.

×

Volumetric

sCOLOR V

Dosing motors

Maintenance free and reliable

The dosing motors are brushless which makes them maintenance-free. They are swivel mounted and can be removed without tools.

×

Volumetric

sCOLOR V

Simple calibration

No material spillage during calibration.

By loosening two star-grips, you can easily withdraw the dosing module in order to collect and weigh the additive sample during calibration. This means you save time and there is no material spillage.

×

Volumetric

sCOLOR V

Quick material changeovers

Higher efficiency because more time spent in production.

Material changeovers and cleaning are fast and require no tools. The unit is easy to operate and saves you valuable time because of the quick-change system, a removable supply hopper, a swivel mounted motor, and a dosing screw with a quick release connection. The complete dosing module can be used as a colour cassette, allowing you fast colour changes without any previous cleaning.

×

Volumetric

sCOLOR V

sCOLOR control

Intuitive colour graphic display with touch screen for easy operation of sCOLOR V.

The modern microprocessor control comes with 16 user interface languages. It is suitable for one or two dosing modules and has a user-friendly additive calibration wizard. The regrind compensation function ensures that only the necessary masterbatch is dosed.
