sCONVEY control

sCONVEY control

The sCONVEY control is a decentralised control system for operating and monitoring a conveying system. The control can be easily expanded using universal IO nodes. This allows the system to be flexibly adapted to current production requirements. The control system features an innovative, open network architecture based on Ethernet. This flexibility makes it easy to set up complex plant conveying systems.

sCONVEY control: High flexibility
High flexibility Decentralised control with free configuration for continuous operation. Read more
sCONVEY control: Integrated control
Integrated control Integrated control supports a wide range of conveying components. Read more
sCONVEY control: Platform-independent data exchange
Platform-independent data exchange Ethernet connection and standardised interfaces ensure simple networking. Read more
sCONVEY control: Intuitive user interface
Intuitive user interface Intuitive user interface enables uncomplicated, fast and safe operation. Read more
sCONVEY control: Centralised conveying solution for regrind
Centralised conveying solution for regrind Standardised management and re-use of regrind. Read more
sCONVEY control: Siemens Platform
Siemens Platform Flexible control with high reliability. Read more
sCONVEY control: Universal conveying nodes
Universal conveying nodes Standard node for simple and convenient configuration. Read more
sCONVEY control: Remote operation panel
Remote operation panel Quick and targeted access from the entire factory. Read more
All advantages at a glance
High flexibility
Integrated control
Platform-independent data exchange
Intuitive user interface
Centralised conveying solution for regrind
Siemens Platform
Universal conveying nodes
Remote operation panel
  • ×
×

sCONVEY control

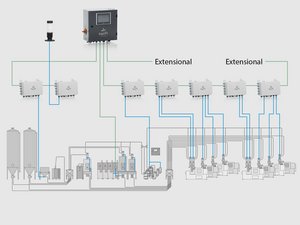

High flexibility

Decentralised control with free configuration for continuous operation.

The sCONVEY control is equipped with expandable IO nodes. They are suitable for controlling all conveying components and are easy to install. Each IO node acts as a switching point for the network connection and can be freely deployed and configured according to the site conditions of the system. The complete decentralised control system is based on an Ethernet connection for flexible use and expansion of the conveying system.

×

sCONVEY control

Integrated control

Integrated control supports a wide range of conveying components.

The sCONVEY control can control a wide range of conveying components:

  • 60 material loaders on drying bins
  • 160 material loaders on processing machines
  • 9 line blowers
  • 3 standby blowers
  • 60 purging valves under the drying bin
  • 120 independent purging valves
  • 180 regrind material source
  • 12 alarm lights with horn
×

sCONVEY control

Platform-independent data exchange

Ethernet connection and standardised interfaces ensure simple networking.

The sCONVEY control uses Ethernet as the network technology and offers a wide range of internationally available interfaces. This significantly reduces the cost and effort of networking. Digitisation can be introduced into the system without additional investment.

×

sCONVEY control

Intuitive user interface

Intuitive user interface enables uncomplicated, fast and safe operation.

The main controller of the sCONVEY control is equipped as standard with a high-resolution 7" full colour touch screen display. The intuitive user interface allows easy access to the status of all conveyor components and the setting of equipment parameters. Data is visualised and can be synchronised with SCADA/MES/ERP platforms.

×

sCONVEY control

Centralised conveying solution for regrind

Standardised management and re-use of regrind.

The sCONVEY control supports the user in the management and reutilisation of regrind. The material loader selects several sources for regrind, conveys and automatically switches between the sources. Manual sorting and distribution of regrind is not necessary, saving labour time and reducing the risk of mixing materials.

A fully automatic solution for conveying, mixing and drying is realised by the possible installation of an sCOLOR V dosing and mixing unit on an sDRYBIN A drying bin.

×

sCONVEY control

Siemens Platform

Flexible control with high reliability.

The sCONVEY control uses Siemens S7 PLCs as its platform. The PLC is easy to operate and easily scalable. The control system automatically assigns IP addresses based on device names. Manual configuration of the IO nodes is not necessary, which facilitates the installation of large, distributed control systems. This feature also contributes to the performance and reliability of the sCONVEY control system.

×

sCONVEY control

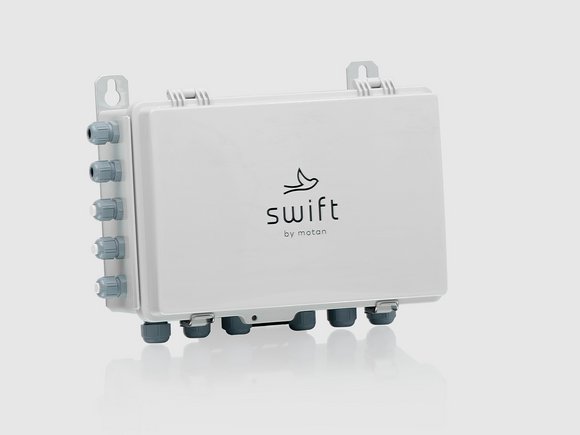

Universal conveying nodes

Standard node for simple and convenient configuration.

All system functions can be realised via a standard node. This reduces the variety of spare parts.

×

sCONVEY control

Remote operation panel

Quick and targeted access from the entire factory.

Multiple operator panels can be integrated into the system via a network connection. In this way, the conveying system can be accessed from anywhere in the factory.
