sBLEND G
Gravimetric

sBLEND G

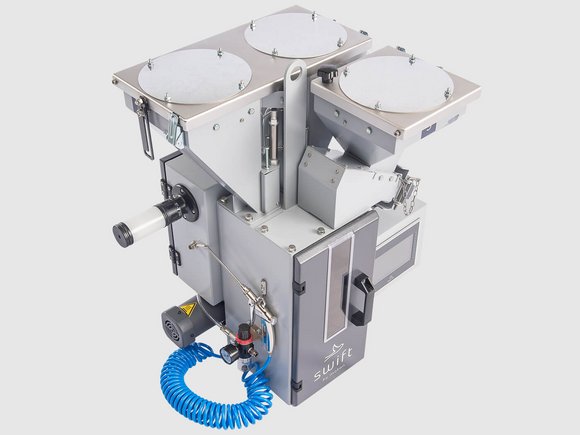

sBLEND G gain-in-weight dosing and mixing units accurately dose and mix up to four materials. These modular, gravimetric units are available in sizes 50, 130 and 300 with the largest unit having a total average throughput of up to 300 kg/h. The units operate with two different types of dosing: vertical slide valves for the main components and up to two screw feeders for high accuracy dosing of additives.

The sBLEND G is equipped with an advanced microprocessor control system. It can display and monitor throughput and provides calibration support. The sBLEND G can be operated locally or remotely via Ethernet.

sBLEND G: Gravimetric dosing
Gravimetric dosing Absolutely true to recipe and reproducible. Read more
sBLEND G: Slide valve dosing
Slide valve dosing High accuracy. Read more
sBLEND G: Angled screw dosing
Angled screw dosing Greater accuracy because no material slip. Read more
sBLEND G: Modular design
Modular design Flexibility for individual applications. Read more
sBLEND G: Stainless steel
Stainless steel Contamination free and easy to clean. Read more
sBLEND G: Quick material changes
Quick material changes No tools required. Read more
sBLEND G: Dosing motors
Dosing motors Greater reliability because maintenance free. Read more
sBLEND G: Weigh bin
Weigh bin Easy and quick handling. Read more
sBLEND G: Mixing chamber
Mixing chamber Homogeneous mix. Read more
sBLEND G: Installation on the machine
Installation on the machine Saves you valuable floor space. Read more
sBLEND G: sBLEND control
sBLEND control Modern microprocessor control. Read more
All advantages at a glance
Gravimetric dosing
Slide valve dosing
Angled screw dosing
Modular design
Stainless steel
Quick material changes
Dosing motors
Weigh bin
Mixing chamber
Installation on the machine
sBLEND control
  • ×
×

Gravimetric

sBLEND G

Gravimetric dosing

Absolutely true to recipe and reproducible.

The high and consistent dosing accuracy of sBLEND G means that you can reduce the percentage of additives to be dosed without loss of quality, thus saving material and costs.

×

Gravimetric

sBLEND G

Slide valve dosing

High accuracy.

The main components (either virgin or regrind material) are dosed with a vertical slide valve. In this way, a high dosing accuracy is achieved. The slide valves are controlled by pneumatic cylinders.

×

Gravimetric

sBLEND G

Angled screw dosing

Greater accuracy because no material slip.

The screw dosing modules are available in two sizes and can be removed without tools. Additives are dosed into the weigh hopper via an angled feed auger. This reduces material slippage and prevents over-dosing of expensive additives, which in turn saves money.

×

Gravimetric

sBLEND G

Modular design

Flexibility for individual applications.

The sBLEND G is available with two slide valves as standard. The allocation of up to two additive components is flexible. Two different screw sizes are available.

×

Gravimetric

sBLEND G

Stainless steel

Contamination free and easy to clean.

All material contact parts are made of stainless steel. This ensures contamination free operation and easy cleaning due to the high-quality surface finish.

×

Gravimetric

sBLEND G

Quick material changes

No tools required.

Cleaning and material changes are quick and easy without the need for tools. The quick-change feed screw system, removable supply hopper, swivel-mounted motor and quick-release dosing screws are easy to clean. They make handling easier for the operator and thus reduce the time required.

×

Gravimetric

sBLEND G

Dosing motors

Greater reliability because maintenance free.

The dosing motors are swivel mounted and can be removed without tools. The motors are brushless and have integrated motor management which makes them maintenance free.

×

Gravimetric

sBLEND G

Weigh bin

Easy and quick handling.

The weigh bin can be removed quickly and easily without the need for tools and can be cleaned away from the unit.

×

Gravimetric

sBLEND G

Mixing chamber

Homogeneous mix.

The bowl-shaped mixing chamber with its optimised agitator design creates a zone free of dead spots where the raw materials are evenly mixed. The design promotes uniform discharge to reduce material loss. The mixing chamber can be removed for cleaning quickly, easily and without tools.

×

Gravimetric

sBLEND G

Installation on the machine

Saves you valuable floor space.

The sBLEND G can be easily mounted on the throat of a processing machine. Material segregation is prevented because of the short distance the material travels from the sBLEND G mixing chamber to the machine throat.

Of course, the dosing and mixing unit can also be placed next to the machine or operate as a central station feeding multiple processing machines.

×

Gravimetric

sBLEND G

sBLEND control

Modern microprocessor control.

The sBLEND control unit is a state-of-the-art microprocessor control unit with an innovative, open network architecture based on Ethernet. This allows the sBLEND G to be operated directly at the machine or remotely.

The advanced 7" colour touch screen display is intuitive and easy to use for fast and safe operation. The controller can monitor and display throughput and provides calibration support. The material feed rate is automatically calculated based on the calibrated weight and formula.
